What Is Geothermal Heating and Cooling?
A geothermal heat pump does not burn fuel to create warmth. Instead, it moves heat that already exists – drawing energy from the earth in winter and returning it to the ground in summer. Connecticut’s subsurface temperature holds steady at 50 to 55 degrees Fahrenheit year-round, regardless of the season above ground. That stable thermal reservoir is what makes ground source heat pump technology one of the most efficient heating and cooling solutions available anywhere.
Geothermal systems are also called ground source heat pumps. Both terms describe the same technology: a system that exchanges heat with the earth through a buried loop field, delivering year-round comfort with significantly lower operating costs than oil, propane, or conventional air conditioning.
Ground source heat pump systems achieve COP (Coefficient of Performance) ratings of 3.0 to 4.5 – meaning every dollar you spend on electricity delivers 3 to 4.5 dollars worth of heating or cooling. EER (Energy Efficiency Ratio) ratings of 15 to 25 confirm geothermal as the efficiency leader in home comfort.
Ralph Mann & Sons installs:
- Water-to-air ducted geothermal systems for homes with existing ductwork
- Water-to-water hydronic geothermal systems for radiant floor heating
- Hybrid geothermal configurations integrating ground source with supplemental systems
- Closed-loop vertical bore and horizontal trench systems based on your property
- Open-loop well systems where site conditions and Connecticut regulations allow
The Ground Loop
Where Your System Starts
The ground loop is the foundation of every geothermal system. It is a buried network of pipes that continuously exchanges heat between your home and the earth. Ralph Mann & Sons engineers every loop field based on your specific lot size, soil conditions, local geology, and calculated heating and cooling load – never a standard formula applied to every property.
Connecticut’s geology, which includes glacial till soils and underlying bedrock, makes vertical bore configurations the most common and efficient approach in this region.
Closed-Loop Vertical Bores
- Drilled 150 to 400 feet deep depending on geology and system load
- Preferred for smaller lots where open land is limited
- Thermally enhanced grout ensures optimal subsurface heat transfer
Closed-Loop Horizontal Trenches
- Requires 400 to 600 feet of pipe per ton at 4 to 6 foot depths
- Best suited for properties with adequate open land area
- Full site restoration with topsoil, seeding, and grading included
Open-Loop Well Systems
- Uses groundwater directly as the heat exchange medium
- Requires adequate flow rates, water quality, and discharge compliance
- Installed in full compliance with Connecticut well regulations and groundwater protection standards
What a Complete Geothermal
Installation Includes
From the loop field underground to the thermostat on your wall, every component is
engineered by Ralph Mann & Sons to work together.
Ground Loop Field
Your closed-loop or open-loop piping network, sized and installed to engineered specifications based on your property's soil thermal conductivity and calculated heating and cooling load.

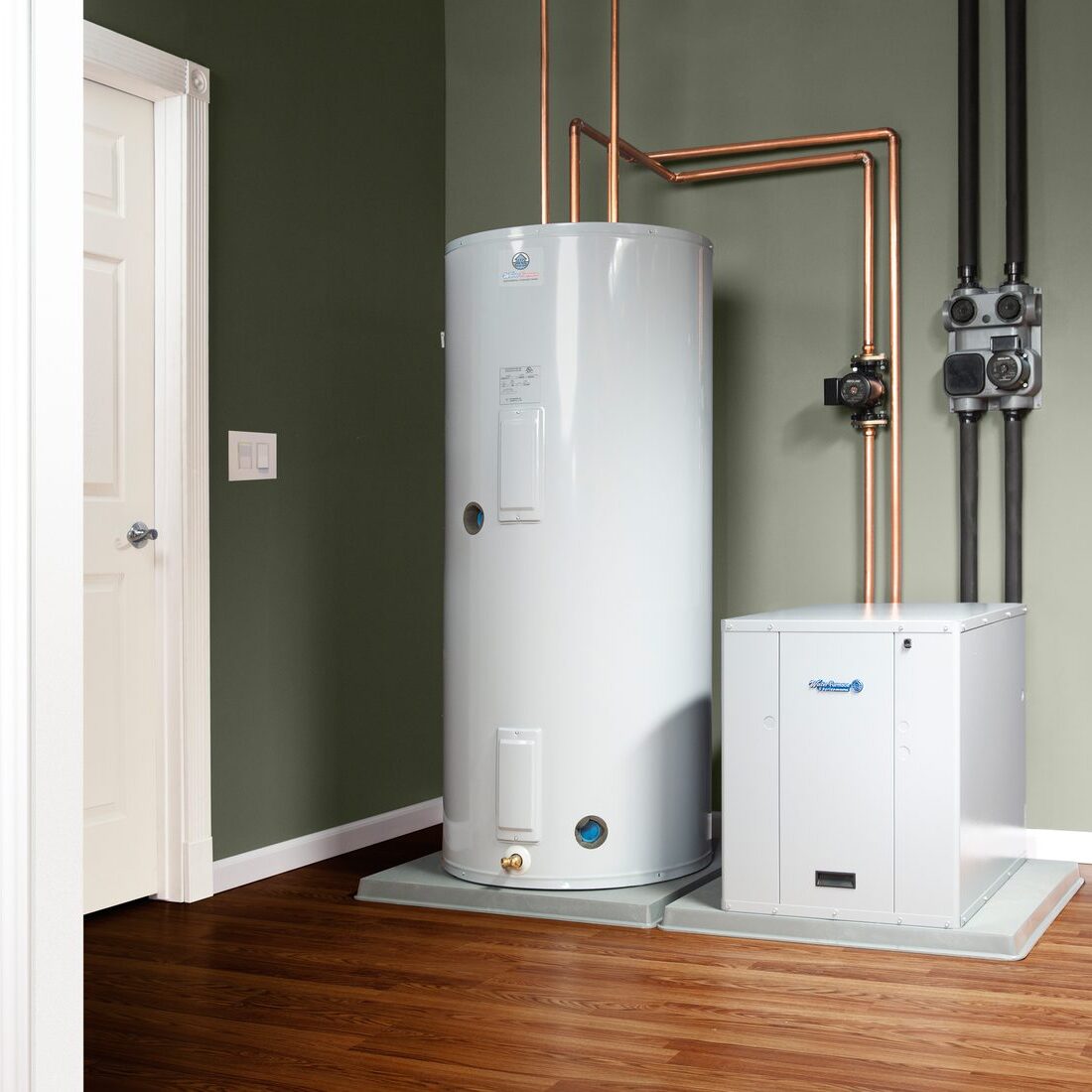

WaterFurnace Heat Pump Unit
A factory-warrantied WaterFurnace ground source heat pump unit, selected using ACCA Manual S equipment sizing - matched to your home's calculated load, not estimated by square footage.
Flow Center and Circulation
Pumps, manifolds, antifreeze purging, and loop pressure verification - the mechanical system that moves thermal energy between the ground loop and your heat pump continuously and efficiently.
Distribution and Commissioning
Full integration with your existing ductwork or hydronic radiant system, all electrical connections, smart thermostat configuration, and documented performance verification before the project is signed off.
Is Geothermal Right for Your Connecticut Home?
Geothermal is not the right answer for every property. It is the right answer for a specific kind of homeowner – and if you recognize yourself below, it is worth a serious conversation with our team.
You are likely a strong candidate for geothermal if:
Geothermal may not be the right fit for every lot, soil condition, or budget. Ralph Mann & Sons conducts a thorough on-site feasibility assessment before recommending any system – and we will give you an honest answer even when that answer points somewhere else. If geothermal is not right for your property, we have options.
What Changes When You Switch to Geothermal
| 50 to 70% | Reduction in heating and cooling costs vs. oil or propane |
| COP 3.0 to 4.5 | Every $1 in electricity delivers up to $4.50 in comfort |
| 20 to 25 years | Typical lifespan of the indoor WaterFurnace heat pump unit |
| 50+ years | Lifespan of the buried ground loop |
Utility bill
The most immediate change is your utility bill. Geothermal systems typically reduce heating and cooling costs by 50 to 70 percent compared to fuel oil or propane combined with conventional air conditioning. For Connecticut homeowners on heating oil where market prices swing with the season and global supply chains that reduction is not just welcome. It is reliable.
Comfort
The second change is comfort. Ground temperatures hold at 50 to 55 degrees Fahrenheit year-round, so your system does not lose performance during a cold snap the way an air-source heat pump does. No short cycling. No cold spots. No outdoor compressor noise.
Peace of Mind
The third change is everything you stop thinking about. No oil deliveries to schedule. No tank to monitor. No combustion equipment in your mechanical room.
Geothermal vs. Other Heating and Cooling Options
Choosing a home comfort system is a long-term decision. Here is how geothermal compares to the most common alternatives for Connecticut homeowners.
| Feature | Geothermal | Oil or Propane | Air-Source Heat Pump |
|---|---|---|---|
| Fuel dependence | None | High | None |
| Winter efficiency | Consistent ground temp stable year-round | Consistent but fuel cost is volatile | Efficiency drops in extreme cold |
| Heating and cooling combined | Yes | Separate systems required | Yes |
| Operating cost | Lowest long-term | Highest | Moderate |
| On-site emissions | None | Yes | None |
| System lifespan | 20-25 yrs (unit) + 50+ yrs (loop) | 15-20 yrs | 15-20 yrs |
| Federal tax credit | 30% Residential Clean Energy Credit | None | 30% (different IRS category) |
| Energize CT rebate eligible | Yes - up to $15,000 | No | Yes - up to $10,000 |
The key advantage geothermal holds over an air-source heat pump in Connecticut’s climate is cold-weather performance. When outdoor air temperatures drop well below freezing in January and February, air-source efficiency falls. A ground source heat pump draws from a thermal reservoir that never freezes, so performance stays consistent all winter long.
The Reason Most Geothermal Systems Underperform
Most geothermal system failures in Connecticut share one root cause: the system was never properly sized or designed. An oversized ground source heat pump short-cycles – turning on and off too frequently – which reduces efficiency, accelerates component wear, and delivers exactly the inconsistent comfort the homeowner was trying to solve.
The fix is straightforward. It requires a contractor willing to invest the time in a real load calculation before a single piece of equipment is specified.
Craig Mann personally handles every Ralph Mann & Sons geothermal consultation. Before any system is recommended, he performs comprehensive ACCA Manual J load calculations accounting for your home’s insulation, window efficiency, air leakage, ventilation requirements, and Connecticut design temperatures. Equipment is then selected using Manual S and the distribution system is designed to Manual D standards. The result is a system that performs precisely as engineered – on day one and decade one.
Before hiring any geothermal contractor, ask one question: will you perform a full Manual J load calculation for my specific home? If the answer is no, keep looking.
“Excellent customer service! They maintain my geothermal system they put in 14 years ago and service home and office generators. Excellent, prompt response, great work guys. The BEST!! Especially Kevin."
–Kim Brinton
How a Ralph Mann & Sons Geothermal Installation Works
From the first site visit to the day your system is commissioned, here is exactly what to expect. All projects are coordinated through our office at 505 Main Street in Ansonia and tracked through our Housecall Pro system with GPS technician updates and automated notifications so you always know where things stand.
1
Feasibility Study and System Design
Weeks 1 to 2
We conduct an on-site assessment of your property and perform comprehensive Manual J, S, and D calculations. We evaluate your lot, subsurface conditions, existing distribution, and utility account eligibility. You receive a detailed proposal with transparent pricing before anything is scheduled or signed.
2
Drilling and Loop Field Installation
Weeks 3 to 5
Licensed drilling contractors complete vertical bores or excavation teams install horizontal trenches based on the engineered specifications from Phase 1. We manage all drilling access, landscaping protection, and spoil removal. Thermally enhanced grouting is applied to every bore to ensure optimal heat transfer between the ground and your loop fluid.
3
Interior Mechanicals and Commissioning
Weeks 6 to 10
Our Connecticut-licensed technicians install your WaterFurnace heat pump unit, integrate it with your ductwork or hydronic distribution, complete all electrical connections, and install the flow center. We verify loop pressure, measure entering and leaving water temperatures, confirm airflow, and document performance against the design specification. The project is not complete until the numbers match the engineering.
All required permits are coordinated by Ralph Mann & Sons in full compliance with Connecticut Department of Consumer Protection licensing. We hold HTG.0303047-S1, PLM.0203557-P1, and ELC.0123595-E1 — the heating, plumbing, and electrical licenses required for a complete geothermal installation.
Geothermal Pays You Back. Here Is How.
The upfront investment in geothermal is real. So are the financial tools available to reduce it – and Ralph Mann & Sons works with customers on all three of the major programs available to Connecticut homeowners.
30% Federal Tax Credit. No Cap
Under the Inflation Reduction Act’s Residential Clean Energy Credit, qualifying geothermal heat pump installations receive a 30 percent federal tax credit on the total installation cost with no dollar cap. A $25,000 installation yields a $7,500 credit. Claimed on IRS Form 5695 at tax filing.
Energize CT Ground Source Rebate Up to $15,000
The Energize CT Residential Ground Source Heat Pump Incentive pays $1,500 per ton up to a maximum of $15,000 for qualifying systems. Ralph Mann & Sons is a participating contractor in the Energize CT Heat Pump Installer Network, which means our customers are eligible for this rebate. Pre-registration and program approval is required before installation begins – we guide you through the process.
CT Green Bank Smart-E Loan. As Low As 0.99%
Connecticut homeowners can finance geothermal installations through the CT Green Bank Smart-E Loan program. As of 2025, a special rate of 0.99 percent for up to 10 years was available for qualifying Eversource and Avangrid customers. Low monthly payments make it possible to start capturing energy savings immediately while spreading out the installation investment.
110 Years of Home Comfort Expertise. IGSHPA-Certified Geothermal Specialists.
Ralph Mann & Sons was founded in 1916 by Ralph Mann Sr. and has been family-owned and operated across four generations. The company has navigated every major shift in home comfort technology – from coal to oil to gas to geothermal – while continuously serving New Haven County, Litchfield County, and Fairfield County, Connecticut. That kind of knowledge takes generations to build and cannot be replicated by a franchise or a national chain.
Craig Mann personally handles geothermal consultations, bringing that institutional depth to every feasibility assessment, load calculation, and system design.
For geothermal specifically, credentials and affiliations verify what experience alone cannot:
Our 21-person team includes 13 Connecticut state-licensed field technicians operating 12 service vehicles. When you call 800-995-6266, you reach a family business that has been answering that call for over a century.
Frequently Asked Questions About Geothermal Installation in Connecticut
Part of a Complete Home Comfort Plan
Geothermal is one of the most impactful home comfort decisions you can make – and Ralph Mann & Sons provides the full range of systems to support every Connecticut home, whether geothermal is the right fit today or not.
Heating Services
From furnace installation and boiler replacement to heat pumps and hybrid systems, explore our full heating service line for Connecticut homes.
Central Air Conditioning
If geothermal is not the right fit right now, central air conditioning may be your next step. We install and service central AC systems throughout Connecticut.
Ductless Mini-Splits
For older homes, additions, or supplemental comfort zones without existing ductwork, ductless mini-split systems offer flexible and efficient heating and cooling.
Indoor Air Quality and Ventilation
Geothermal systems affect your whole-home air distribution and humidity. Pairing your installation with the right ventilation strategy makes a meaningful difference in comfort.
